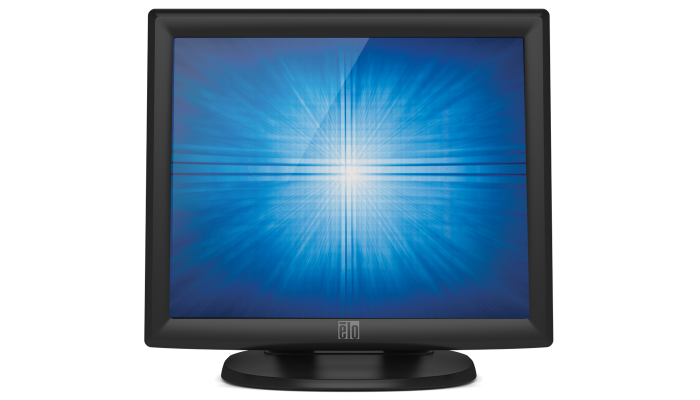

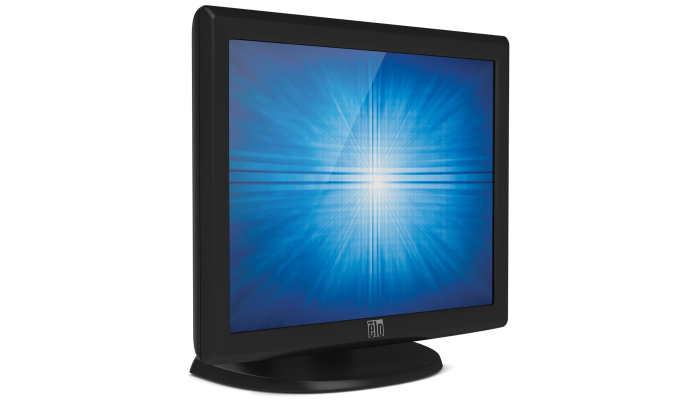

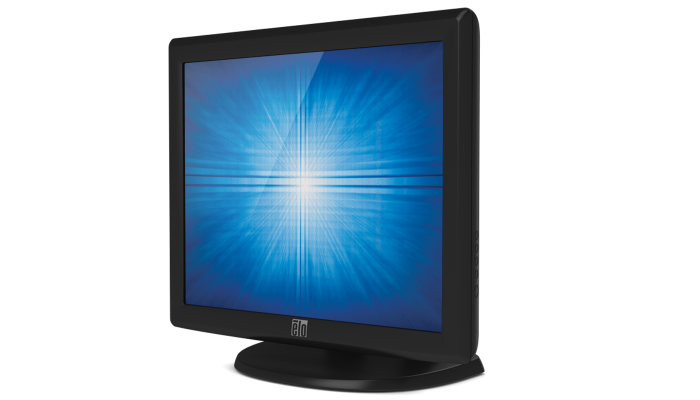

1515L 15" Touchscreen monitor (Discontinued March 2015)
Overview
The 1515L touchmonitors are designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo Touch Solutions. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1515L features a choice of touchscreen technologies: AccuTouch® five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch® pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications; Acoustic Pulse Recognition for a pure-glass surface that recognizes sound from both hard and soft stylus touches; projected capacitive for a durable, zero-bezel, glass-to-edge surface with multi-touch*.
Other features.
- Economical and reliable
- Up to 1024 x 768 resolution at 75 Hz
- Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove), Acoustic Pulse Recognition Technology or projected capacitive (PCAP) zero-bezel touchscreen
- Optional ergonomic 3 stripe MSR available in two versions - USB with keyboard emulation and USB with human interface device (HID) class specification 1.1
- Sealed touchscreen
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security

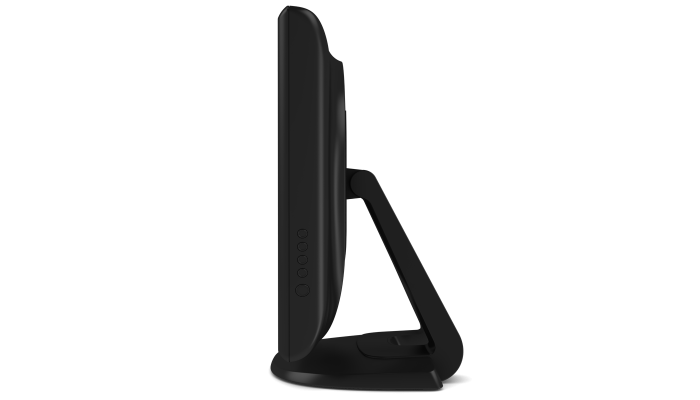

- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Internal power supply
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (China) - E183106
AccuTouch (Americas) - E290484
Acoustic Pulse Recognition (Americas) - E176383
Acoustic Pulse Recognition (Americas) - E538481
Acoustic Pulse Recognition (China) - E557524
Acoustic Pulse Recognition (EMEA) - E817158
Acoustic Pulse Recognition (EMEA) - E778289
IntelliTouch (Americas) - E036936
IntelliTouch (China) - E447013外壳颜色
黑色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
PCAP (投射式电容) - 双点触控
声学脉冲识别 - 单触对角线
15 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
12.0" x 9.0" / 304 mm x 228 mm
分辨率
1024 x 768
其他支持的分辨率
1024 x 768 60, 70, 75 Hz
1024 x 768 65 Hz (Sun)
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)可视角度
水平: ±70°或 140°总计 /垂直: 65°/60°或 125°总计
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
AccuTouch: 200 nits
Acoustic Pulse Recognition: 225 nits
IntelliTouch: 225 nits
Projected Capacitive: 225 nits响应时间 - 总计 (标准)
11.7 msec
对比度
500:1
屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French Lockouts: power, user controls视频输入格式
Analog VGA
视频输入信号接口
Mini D-Sub 15-Pin VGA type
功耗 (标准)
30W
电源
Internal AC, Optional external DC (power brick)
输入电压
AC: 100-240 VAC, 50/60 Hz / DC: +12VDC ±5%
输入接口
AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
输入频率
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
显示器尺寸 (含底座)
13.8" x 12.2" x 6.9" / 350 mm x 310 mm x 175 mm
Dimensions vary with stand position and options selected运输尺寸
17.52" x 14.96" x 10.24" / 445mm x 380 mm x 260 mm
重量 (含底座)
10.6 lb / 4.8 kg
重量 (不含底座)
7.3 lb / 3.3 kg
运输重量 (含底座)
15.4 lb / 7.0 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20%-80%
Storage: 10%-90%密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
底座选项
Removable
安装选项
75 mm VESA mount
Threaded-through mounting holes, under stand其他功能
Security lock receptacle
质保
3年
机构认证
North America/Worldwide: UL, cUL ,FCC, CE, Semko or Demko, VCCI, ICES, C-TICK, MPRII, Argentina S-Mark
Asia: UL, cUL, FCC, CE, Semko, VCCI, IC, C-TICK, MPRII, Argentina S-Mark, BSMI, CCC, KC, China RoHS电源线
A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region.
可替换DC电源
The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E757851, is available at additional cost. AC power cables for power brick are also available at additional cost:
United States: Elo P/N - E042259
Europe: Elo P/N - E690013
United Kingdom: Elo P/N - E235317AC电源线
AC power cables for power brick are also available at additional cost:
United States: Elo P/N - E042259
Europe: Elo P/N - E690013
United Kingdom: Elo P/N - E235317可选 IntelliTouch 手写笔
Stylus pen with rubber tip, designed specifically for use with IntelliTouch surface acoustic wave touch technology. Elo P/N: D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
Stylus pen with metal tip, designed specifically for use with Acoustic Pulse Recognition (APR) technology. Part number E963860, available at additional cost.
触控/视频线:
Detachable touch and video cables are included.
可选外设
磁条阅读器 (MSR) – Elo P/N: E623874
可选底座
Elo P/N: E245090, available at additional cost.
