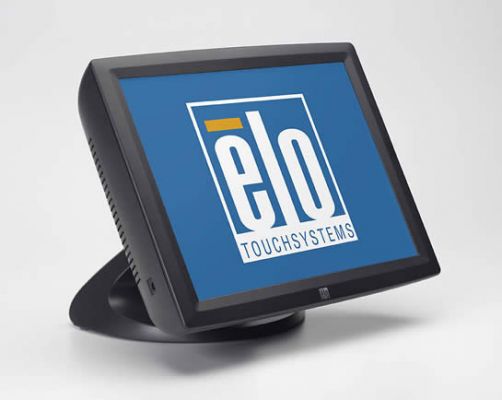

1520 15" Touchcomputer (Discontinued November 2011)
Overview
The new Elo 1520 All-in-One Touchcomputer brings a new level of performance to graphic-intensive applications, such as patient bedside entertainment, retail digital signage, point-of-information and table-top gaming where high processing speed and advanced video graphics are needed. To meet the diverse computing needs required for these markets, the 1520 is available with the choice of two processors: the Intel® Core Duo 3.0 GHz or the Intel® Dual Core Atom™ 1.6Ghz, both with an advanced graphics chip set and multiple external ports to support a variety of configurations.
The 1520 expands the Elo family of reliable, multi-function touch solutions. The 1520 All-in-One Touchcomputer supports the popular Microsoft® operating systems, including Windows® XP and WEPOS, and is also available with no operating system offering maximum flexibility. A selection of industry-leading Elo touch technologies including Acoustic Pulse Recognition (APR), IntelliTouch® surface acoustic wave, and AccuTouch® 5-wire resistive make the 1520 All-in-One Touchcomputer a solutions-based system preferred for the rigors of public venues such as retail display units, customer loyalty systems, point of information systems, internet access sites, and digital signage as well as bedside entertainment and home control.
Other Features
- "Designed for touch" from the ground-up; stable stand and adjustable tilt display - Elo quality and reliability
- Available with Acoustic Pulse Recognition, AccuTouch 5-wire resistive and IntelliTouch surface acoustic wave touch technologies - Wide portfolio of touch technologies, each optimized for different operating characteristics and environments to suit diverse application requirements
- Wide portfolio of touch technologies, each optimized for different operating characteristics and environments to suit diverse application requirements - Eliminate accidental damage when liquids are spilled
- Long-lasting product design - Elo touchcomputers have a history of being available—with an unchanged mechanical design—throughout all phases of project rollouts and for future spares
- Bright, high contrast - Improved screen readability
- Security lock receptacle - Provides fast, effective, and convenient security
- North American agency approvals - Meets local agency approvals
- Excellent cable management and cables hidden from view - Eliminate accidental disconnection with a clean, professional look
- Multiple input/outputs - Accessible input/output ports for easy connection
- Ability to further customize internal components and external features - Designed to add highly customizable features to meet customers demanding requirements in a variety of settings
- 3-year warranty - Customer satisfaction and peace of mind
规格
-
技术
产品料号
1520 Standard:
AccuTouch (Antiglare) - E085682
AccuTouch (Antiglare) - E910838
AccuTouch (Antiglare) - E312821
AccuTouch (Antiglare) - E754026
AccuTouch (Antiglare) - E454502
AccuTouch (Antiglare) - E722455
AccuTouch (Antiglare) - E077548
AccuTouch (Antiglare) - E957343
AccuTouch (Antiglare) - E852976
IntelliTouch (Antiglare) - E306068
IntelliTouch (Antiglare) - E965540
IntelliTouch (Antiglare) - E468488
IntelliTouch (Antiglare) - E041157
IntelliTouch (Antiglare) - E655628
IntelliTouch (Antiglare) - E290812
IntelliTouch (Antiglare) - E724797
IntelliTouch (Antiglare) - E866071
IntelliTouch (Antiglare) - E115697
1520 Advanced:
Acoustic Pulse Recognition (Antiglare) - E844037
Acoustic Pulse Recognition (Antiglare) - E361327
Acoustic Pulse Recognition (Antiglare) - E439055外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
声学脉冲识别 - 单触处理器
1520 Standard:
Intel 1.66GHz Atom Dual-Core D510,
1 MB L2 Cache,
533MHz System Bus
1520 Advanced:
Intel 3.0GHz Core 2 Duo E8400,
6 MB L2 Cache,
1333 MHz System BusBIOS
1520 Standard: AMI
1520 Advanced: Intel内存 (RAM)
1520 Standard:
1GB, 2GB or 4GB DDR2 options
1520 Advanced:
2 GB DDR2 667 MHz SDRAM
(Expandable to 4 GB, available as a
custom order only)硬盘
1520 Standard:
1 x 2.5" SATA hard drive, 160GB
1520 Advanced:
1 x 2.5" SATA hard drive, 160 GB芯片组
1520 Standard:
Intel NM10 Express
1520 Advanced:
Intel Q45 Express Chipset and
Intel I/O Controller Hub 10 (ICH10DO)对角线
15 英寸对角线，有源矩阵 TFT LCD (LED)
屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temperature), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: user controls长宽比
4:3
有效显示区域 (mm)
12.0" x 9.0" / 304 mm x 228 mm
分辨率
1024 × 768 at 60 Hz
其他支持的分辨率
1024 × 768 at 60, 65 Hz, 70 or 75 Hz
832 × 624 at 75 Hz
800 × 600 at 56, 60, 72 or 75 Hz
720 × 400 at 70 Hz
640 × 480 at 60, 66 Hz, 72 or 75 Hz
640 × 350 at 70 Hz色彩
1670万
亮度 (标准)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 230 nits
Acoustic Pulse Recognition: 230 nits响应时间 - 总计 (标准)
14.5 msec
对比度
500:1
可视角度
Horizontal: ±70° or 140° total / Vertical: 60/55° or 115° total
USB端口
1520 Standard: 4 x USB 2.0
1520 Advanced: 6 x USB 2.0串口
1520 Standard: 1 x RS-232 Serial
以太网端口
1 x LAN RJ45 (Gigabit)
额外视频输出
1520 Advanced: 1 x DVI-D
音频端口
1 x 3.5mm line-in
1 x 3.5mm line-out
1 x 3.5mm mic in
6 channel HD audio扬声器
Two-watt/channel speakers in display head
操作系统
无操作系统
Windows 7 专业版*
Windows XP Professional Service Pack 2
Windows Embedded for Point of Service (WEPOS)
Windows XP Professional Service Pack 3 (32-bit only)语言
Windows 7 - 35 语言组
Windows XP – 24 Language groups; WEPOS - 5 language groups
Windows XP - 33 Language group电源
Type: External DC (power brick)
输入电压
Computer: 12 VDC
Power Brick: 100-240 VAC, 50-60 Hz功耗 (标准)
1520 Standard:
150W (12.5A at 12A max)
1520 Advanced:
150W (12V at 12.5A max)带底座的最大尺寸
14.0" x 11.3" x 11.0" / 355 mm x 287 mm x 280 mm
不带底座的最大尺寸
14.0" x 11.1" x 3.5" / 355mm x 282 mm x 89 mm
运输尺寸
17.5" x 13.8" x 15.2" / 445 mm x 352 mm x 386 mm
重量 (不含底座)
1520 Standard: 15.0 lbs / 6.8 kg
1520 Advanced: 16.0 lbs / 7.3 kg重量 (不含包装)
1520 Standard: 17.0 lbs / 7.7 kg
1520 Advanced: 18.0 lbs / 8.2 kg重量 (含包装)
1520 Standard: 23.0 lbs / 10.4 kg
1520 Advanced: 24.0 lbs / 10.9 kg工作温度
0°C to 35°C / 32°F to 95°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20%-80%
Storage: 10%-90%机构认证
UL/cUL (UL60950-1/CSA C22.2 No. 60950-1-03), FCC Class A
Elo Declarations: RoHS, WEEE, CE实时时钟
锂离子电池
MTBF
50,000小时演示
安装选项
75 mm VESA mount
Threaded holes on bottom of base for mounting质保
3年
密封性
Touchscreen sealed to bezel (IntelliTouch)
Touchscreen sealed to sub-bezel (AccuTouch, APR)
Touchscreen sealed to LCD (all)电源线
North American power cable and a European power cable are included
其他功能
Accessible HDD
Removable base with 75mm VESA mounting
Threaded holes on bottom of base for secure mounting
Kensington security lock升级选项
320GB 5400 rpm 硬盘驱动器 (HDD) - E274069
RE/SE系列 AC 电源线订购信息
北美 p/n: E042259
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
Magnetic Stripe Reader (MSR)
The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses
conforming to ISO/ANSI standards. The MSR has foreign language capability. The credit card is read by
sliding the credit card forward or backward through the MSR. The MSR is powered from the USB port; no
external power is needed. The MSR features are:
Reads up to 3 tracks of information
Bidirectional swipe reading
Superior reading of high jitter, scratched, and worn MagStripe cards
Reliable for over 1,000,000 card swipes
Reads ISO7811, AAMVA, and most other card data formats
PC software makes configuration changes easy
Swipe speeds from 3 to 60 inches per second
Interfaces: USB-KB and USB-HID
Fully supports USB 2.0支架，支架和套件
Magnetic Stripe Reader - Elo P/N: E201212
