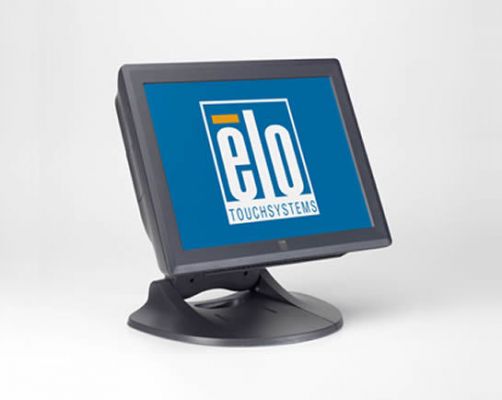

15A2 15" Touchcomputer (Discontinued June 2011)
Overview
The 15A2 touchcomputer with dual video-display capability includes the choice of the industry-leading Elo touch technologies: AccuTouch® five-wire resistive, IntelliTouch® surface acoustic wave, CarrollTouch infrared and the company's innovative Acoustic Pulse Recognition (APR) that blends the benefits of all three. The space-saving, compact design of the 15A2 touchcomputer offers increased flexibility for simplified integration of a variety of optional field-replaceable peripherals that it shares with the 17A2 touchcomputer and 1729L touchmonitor: three-track magnetic stripe reader (MSR); customer-facing display; biometric fingerprint reader; and 3-watt speaker bar with or without optional single line or omni-directional barcode scanner. A unique cable management design conceals cables from view, providing additional security from tampering and robust tie-downs for strain relief. The multi-adjustable stand offers flexibility to accommodate a variety of installation configurations and the stand is easily removed for secure mounting to countertops and walls. Serviceability is enhanced with easy access to the hard drive and compact flash through a slide-out drawer.
Features
- Small integrated, all-in-one touchcomputer - Saves space, with the same footprint as a standard 15" LCD display, Combines processing capability with touchscreen to fit virtually anywhere
- Silent, fanless Intel® Celeron® M design - Can be installed and functional in any point-of-service environment, Reliable operation in demanding environments, 2X performance improvement over 1529 based on Passmark Benchmark
- "Designed for touch" with a stable, wall/arm VESA mount, and mounting holes on stand bottom for table-top installations or wall mounting - Flexible VESA mounting options–configurable as a desktop or wall-mount, Mounting options complement store layout and customer traffic
- Variety of optional field installable and replaceable point-of-service peripherals - Variety of optional field installable and replaceable point-of-service peripherals
- USB 2.0, serial and cash drawer connectivity - Flexibility to support both legacy and future POS peripherals
- Dual video display capability - Allows attachment of a second touch screen display for digital signage
- Microsoft Windows XP Professional, WEPOS - Increases software and peripheral choices offering versatility and compatibility
- On-screen display controls located on the side rather than the front, plus lockout function - Minimizes accidental or intentional changes to the display's controls in a public access environment
- Securable cable cover - Cable management system conceals cables from view providing additional security from tampering and cable strain relief
- Security lock receptacle - Provides fast, effective, and convenient security in any public and/or point-of-service installation
- User accessible hard drive mounted on slide-out drawer - Easy access and quick upgrades or repairs, lockable with one screw
- Touchscreen sealed from the factory - Resists dirt, dust and liquid intrusion
规格
-
技术
产品料号
AccuTouch (Antiglare) - E303492
AccuTouch (Antiglare) - E235543
AccuTouch (Antiglare) - E260931
Acoustic Pulse Recognition (Antiglare) - E403628
Acoustic Pulse Recognition (Antiglare) - E967719
CarrollTouch (Antiglare) - E565315
IntelliTouch (Antiglare) - E099344
IntelliTouch (Antiglare) - E868236
IntelliTouch (Antiglare) - E210444外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
声学脉冲识别 - 单触
CarrollTouch Infrared Technology处理器
Intel Celeron M 1GHz CPU
BIOS
ACPI 2.0, APM 1.2, SMBIOS 2.4, PXE, WOL, WFM 2.0
内存 (RAM)
1 GB DDR2 standard on 1 of 2 slots
Expandable to 2 GB max硬盘
1 x 80 GB 2.5" SATA hard drive
存储
80 GB
芯片组
Intel 915GME/ICH6
对角线
15 英寸对角线，有源矩阵 TFT LCD (LED)
屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: volume, brightness, sharpness, contrast, color temperature, OSD position and orientation, factory reset
Languages: English, French, Italian, German, Spanish
Lockouts: all controls长宽比
4:3
有效显示区域 (mm)
12.0" x 9.0" / 304 mm x 228 mm
分辨率
1024 x 768
其他支持的分辨率
800 x 600
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
AccuTouch: 200 nits
Acoustic Pulse Recognition: 230 nits
CarrollTouch: 230 nits
IntelliTouch: 230 nits响应时间 - 总计 (标准)
8 msec
对比度
500:1
可视角度
Horizontal: ±75° or 150° total/ Vertical: ±70° or 140° total
USB端口
4 x USB self powered 2.0
1 port is 12V powered USB (1.5 A) for POS peripherals串口
2 x RS-232 serial (RJ45, 8 position)
COM2 is RS-232, RS-422 and RS-485 selectable以太网端口
1 x LAN RJ45
钱箱端口
BIOS selectable
1 x cash drawer (RJ11, 6 position) or 1 x RJ11 port for optional internal modem音频端口
1 x 3.5 mm audio-out
1 x 3.5 mm mic-in扬声器
Two-watt/channel speakers in display head
操作系统
Windows XP Professional Service Pack 2
Windows Embedded for Point of Service (WEPOS)语言
Windows XP – 24 Language groups; WEPOS - 5 language groups
电源
External DC (power brick)
输入电压
DC: 12V 120 W min.
功耗 (标准)
Touchcomputer: 85 W max.
Serial VFD customer display: 5 W max.
USB fingerprint reader: 3 W max.
USB magnetic stripe reader: 1 W max.
USB scanner: 3 W max.
Speaker bar: 7 W max.
Modem daughter card: 1 W max.
Wireless card/TV tuner: 5 W max.
Total power drawn with all possible peripherals: 101 W max.带底座的最大尺寸
14.1" x 13.4" x 9.4" / 358 mm x 339 mm x 238 mm
运输尺寸
20.87" x 9.84" x 14.96" / 530 mm x 250 mm x 380 mm
重量 (不含包装)
19.4 lbs / 8.8 kg
重量 (含包装)
25.5 lbs / 11.6 kg
工作温度
0°C to 35°C (32°F to 95°F)
储存温度
-20°C to 60°C (-4°F to 140°F)
湿度
Operating: 20%-80%
Storage: 5%-95%机构认证
UL/cUL (recognized component), FCC, CE, VCCI, C-Tick, EN60950
实时时钟
锂离子电池
MTBF
50,000小时演示
安装选项
75 mm VESA mount
Threaded holes on bottom of stand for secure mounting质保
3年
密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCD电源线
A North American power cable and a European power cable are included. For touchcomputers being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number E235317.
其他功能
Accessible hard disk drive, compact flash, miniPCI card
Kensington security lock扩展选项
Wireless card
Modem daughter card可替换DC电源
12V DC power brick, part number E114692, is available at additional cost
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
