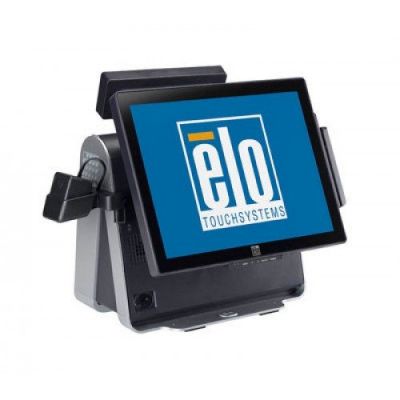

17D1 17" Touchcomputer (Discontinued August 2012)
Overview
The 17D Series 17" All-in-One Touchcomputers bring style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses. With a wide array of field-installable peripherals, spill-resistant sealing, and a range of input/output port connection options, the 17D1 and 17D2 are versatile and powerful. These touchcomputers are designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing Intel Dual-Core 2.2 GHz or Intel Core Duo 3.0 GHZ processors. The 17D Series expands the Elo TouchSystems high profile family of reliable, easy-to-integrate multi-function touch solutions.
Features
- "Designed for touch" from the ground-up; stable stand and tiltable display - Elo quality and reliability
- Available with Zero-Bezel Acoustic Pulse Recognition, True-Flat AccuTouch® 5-wire resistive, and IntelliTouch® surface acoustic wave technology - Wide portfolio of touch technologies, each optimized for different operating characteristics and environments to suit your application requirements
- Touchscreen sealed from the factory - Eliminate accidental damage when liquids are spilled
- Long-lasting product design - Elo touchcomputers have a history of being available—with an unchanged mechanical design—throughout all phases of project rollouts, and even when future spares are needed
- Bright high contrast - Improved screen readability
- On-screen display controls located on the bottom rather than the front, plus lockout function for public use - Minimizes accidental or inadvertent changes to the display's controls
- Security lock receptacle - Provides fast, effective, and convenient security
- Supports 2nd internal SATA hard disk drive - Enables extra storage capacity or disk mirroring (RAID) for data protection
- Worldwide agency approvals - Meets local agency approvals, as required in many countries
- Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
- Field-replaceable motherboard, hard drive and power supply - Easy serviceability minimizes downtime
- Excellent cable management and cables hidden from view - Eliminate accidental disconnection and give a clean, professional look
- 5 serial (2 of which are powered, 5V default/12V switchable), 7 USB 2.0, Ethernet 100/10 Base-T, Cash drawer port, 2 PS/2, Audio (1 line-in, 1 line-out, 1 mic-in), 24V printer power connector, parallel port - Accessible POS/POI-focused input/output ports make installation of peripherals easy
- Clips on the back of the unit - Allow users to display customer-facing messages or advertising
- 3-year warranty - Customer satisfaction and peace of mind
规格
-
技术
产品料号
AccuTouch (Antiglare, Worldwide) - E107932
AccuTouch (Antiglare, Worldwide) - E178811
AccuTouch (Antiglare, Worldwide) - E942332
AccuTouch (Antiglare, Worldwide) - E848814
AccuTouch (Antiglare, Worldwide) - E181180
AccuTouch (Antiglare, Worldwide) - E699044
IntelliTouch (Antiglare, Worldwide) - E680924
IntelliTouch (Antiglare, Worldwide) - E451690
IntelliTouch (Antiglare, Worldwide) - E875048
IntelliTouch (Antiglare, Worldwide) - E831493
IntelliTouch (Antiglare, Worldwide) - E470276
IntelliTouch (Antiglare, Worldwide) - E542060
Acoustic Pulse Recognition (Antiglare, Worldwide) - E747957
Acoustic Pulse Recognition (Antiglare, Worldwide) - E187833
Acoustic Pulse Recognition (Antiglare, Worldwide) - E726010
Acoustic Pulse Recognition (Antiglare, Worldwide) - E520140
Acoustic Pulse Recognition (Antiglare, Worldwide) - E995346
Acoustic Pulse Recognition (Antiglare, Worldwide) - E031317外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
声学脉冲识别 - 单触处理器
Intel Dual-Core Celeron E1500 2.2GHz 512K L2 Cache 800MHz FSB LGA775 Pkg
BIOS
AMI
内存 (RAM)
1GB DDR2 DIMM on 1 of 2 slots (Expandable to 4GB max on 2 slots)
硬盘
160GB 2.5” 160GB SATA HDD
Optional 2nd 160GB hard drive available芯片组
Intel G31/ICH7
对角线
17 英寸对角线，有源矩阵 TFT LCD (LED)
控制按钮
Controls (bottom): menu, up, down, select, power
Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: user controls长宽比
5:4
有效显示区域 (mm)
13.3" x 10.6" / 338 mm x 270 mm
分辨率
1280 x 1024 @ 60Hz
色彩
1670万
亮度 (标准)
LCD panel: 300 nits
AccuTouch: 240 nits
Acoustic Pulse Recognition: 270 nits
IntelliTouch: 270 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
可视角度
水平: ±80° 或 160° 总计 / 垂直: ±80° 或 160° 总计
I/O 端口
2 x PS/2 (1 Keyboard and 1 Mouse)
USB端口
7 x USB2.0 ports
Additional internal ports available for optional Elo peripherals.串口
1 x RS-232 (standard)
2 x USB-to-Serial RS-232 (standard)
2 x USB-to-Serial RS-232 powered (5V default/12V; selectable via jumper)以太网端口
1 x LAN RJ45 (Gigabit)
无线
Optional USB wireless kit available (802.11b/g/n)
钱箱端口
1 x cash drawer (12V/24V default; selectable via jumper)
Compatible with the following APG models:
-MultiPRO 320 with CD-005A cable
-MultiPRO 420 with CD-039A cable音频端口
1 x 3.5mm line-in
1 x 3.5mm line-out
1 x 3.5mm mic-in扬声器
Two 2W internal speakers
操作系统
无操作系统
Windows Embedded for Point of Service (WEPOS)
Windows XP Professional Service Pack 3 (32-bit only)
Windows POSReady 2009
Windows 7 Professional (32-bit only)语言
Windows XP – 24 语言组; Windows 7 – 35 语言组
WEPOS - 32 language groups
Windows POSReady 2009 – 32 Language groups电源
Internal PSU (270W)
输入电压
AC: 100-240 VAC 47-63 Hz
功耗 (标准)
Without Peripherals: 130W
With All Peripherals Connected: 213W带底座的最大尺寸
15.0" x 8.4" x 11.3" / 381 mm x 212 mm x 288 mm
运输尺寸
17.72" x 13.39" x 18.7" / 450 mm x 340 mm x 475 mm
重量 (不含包装)
26 lbs / 11.79 kg
重量 (含包装)
30.7 lbs / 13.93 kg
工作温度
0°C to 35°C / 32°F to 95°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20% - 80%
Storage: 5% - 95%机构认证
UL/cUL, CB, CE, BSMI, NOM, AR S-Mark, CCC, EK, FCC, KCC, GOST-R, RCM, C-Tick, VCCI
实时时钟
锂离子电池
MTBF
50,000小时演示
安装选项
Ability to secure base to tabletop or desktop; tiltable stand
质保
3年
密封性
Touchscreen sealed to bezel (IntelliTouch)
Touchscreen sealed to sub-bezel (AccuTouch, APR)
Touchscreen sealed to LCD (all)电源线
North American and European power cables included
其他功能
Serviceable internal components
Threaded holes on bottom of base for mounting
Kensington security lock升级选项
320GB 5400 rpm 硬盘驱动器 (HDD) - E274069
扩展选项
Optional USB wireless kit available (802.11b/g/n)
Printer power cable
24V Powered USB Cable/Adapter
Second 160GB Hard Disk Drive (HDD)
Solid State Drive (SSD)
2nd HHD/SSD Mounting Kit Only
1GB Low-Profile DDR2 Memory DIMM Kit
2GB Low-ProfileRE/SE系列 AC 电源线订购信息
北美 p/n: E042259
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
Optional Accessories/Peripherals
Single-line barcode scanner
Omni-directional barcode scanner
Optional USB wireless kit available (802.11b/g/n)
Printer power cable
24V Powered USB Cable/Adapter
Second 160GB Hard Disk Drive (HDD)
64GB Solid State Drive (SSD)
2nd HHD/SSD Mounting Kit Only
1GB Low-Profile DDR2 Memory DIMM Kit
2GB Low-Profile DDR2 Memory DIMM Kit
Magnetic Stripe Reader - Elo P/N: E145919
Rear-Facing Customer Display (2x20 VFD) - Elo P/N: E632206
Biometric Fingerprint Reader (FPR) - Elo P/N: E373639
