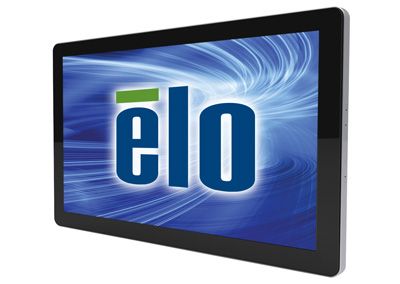

3201L 32" Interactive Digital Signage (Discontinued March 2016)
Overview
Elo's new 3201L 32-inch interactive digital signage touchscreen delivers a professional-grade large format display in a slim, integrated package. Designed from the bottom up for retail, hospitality, healthcare and other commercial markets, the Elo IDS is a high-quality, interactive canvas for attracting and engaging consumers. The 3201L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain in public environments. With a total thickness as thin as 2.8 inches (72 mm), the 3201L is compliant with ADA and IBC requirements of less than 4-inch protrusion for wall-mounted products when used with a compatible wall-mount.
Now available with two choices of pure-glass touch technologies which are durable and well-suited for public environments. The IntelliTouch® Dual-Touch surface acoustic wave multi-touch touchscreen provides display clarity which is undistorted due to use of clear glass. The Projected Capacitive (PCAP) touchscreen offers a fast, accurate, drift-free touch response and is compatible with Microsoft Windows® 7 and Windows® 8 operating systems with up to 10 touches recognized simultaneously.
Without an overlay or substrate, the pure-glass surface is durable and well-suited for public venues and high traffic areas. Elo's 3201L PCAP offers a unique, aesthetically-pleasing seamless, zero-bezel design that is resistant to dirt, impacts, scratches and other contaminants on the screen.Tilt mounts are available for easy cable access. State of the art HD display technology is utilized including a high contrast/brightness LED-backlight LCD panel, extended color gamut with movie/gaming/photo modes, black level adjustment, and on-screen menu enhancements.
Elo IDS -01 series displays are compatible with Intel's Open Pluggable Standard (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 3201L into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware. Computer modules are available in a choice of two models: ECMG2-i3 based on a 3.3GHz Intel® Core i3 processor and HD2500 graphics; and ECMG2-i5 based on a 3.6GHz Intel Core i5 processor and HD4000 graphics. The computer modules make the 3201L a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.
Other features.
- Compatible with Intel Open Pluggable Standard (OPS) with available adapter kit (E102270), sold separately.
- Available with two choices of touch technologies; with IntelliTouch Dual-Touch surface acoustic wave multi-touch by finger or soft stylus with a pure-glass display surface delivering crystal clear images. Or with Projected Capacitive offering a fast and sensitive response compatible with Microsoft Windows® 7 and Windows® 8 operating systems with up to 10 touches.
- Housed in a highly durable steel chassis for a long-life of reliable performance
- VESA mounting or optional stand
- Aspect ratio 16:9
- True High Definition (HD) 1080p (1920 x 1080)
- Seamless, field installable, computer module, docking integration
- Glass UL60950 ball drop tested
- Analog VGA, HDCP-capable HDMI 1.3 and DisplayPort 1.1a, video
- cFour 5W stereo speakers
- Projected Capacitive multitouch (10 touch points – HID)
规格
-
技术
产品料号
IntelliTouch Dual-Touch (USB, Clear, Worldwide) - E415988
Projected Capacitive (USB, Clear, Worldwide) - E739717外壳颜色
黑色
触控技术
SAW (IntelliTouch® 表面声波)-双点触控
PCAP (投射式电容) - 10点触控对角线
32 英寸对角线，有源矩阵 TFT LCD (LED)
有效显示区域 (mm)
27.5" x 15.5" / 698 mm x 393 mm
长宽比
16:9
分辨率
Full HD 1920 x 1080 (native) active matrix TFT LCD with LED backlight; 16.7m colors; 16:9 aspect ratio. Other resolutions supported
其他支持的分辨率
640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56Hz
1024x768 60Hz
1280x720 50, 60Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60HZ RB
1680x1050 60Hz, 60Hz RB
1920x1080 50, 60Hz可视角度
水平: ±89° 或 178° 总计 / 垂直: ±89° 或 178° 总计
色彩
1670万
亮度 (标准)
LCD panel: 350 nits
IntelliTouch Dual-Touch: 315 nits
Projected Capacitive: 301 nits响应时间 - 总计 (标准)
8.0 msec
对比度
3000:1
触控界面
USB: E415988, E739717
屏幕显示 (OSD)
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source
Languages : English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts : OSD, Power
Accessible through switches on the unit's tethered OSD control box.I/O 端口
USB Ports - Type B
视频输入格式
Analog VGA, HDCP-capable HDMI 1.3 and Display Port video
视频输入信号接口
Female DE-15 for Analog VGA
HDMI 1.3 ON Type A
DisplayPort 1.1a音频输入接口
3.5 mm TRS jack
音频信号输入频率
1 Vrms max. stereo signal (standard PC line out)
耳机输出接口
3.5 mm TRS jack
扬声器
Four 5W stereo speakers
电源
Type: Internal AC
输入接口
IEC 60320 C14
输入电压
110-230 VAC 50/60Hz
输入频率
Horizontal: 60 - 73 kHz / Vertical: 47-63 Hz
功耗 (标准)
Input power signal specifications: 100-240VAC 50/60Hz:
With IntelliTouch Dual-Touch:
- Monitor Only Power Consumption (typical at 110V at 60Hz):
ON: 57 W; SLEEP: 11 W; OFF: 1 W
- Monitor Only Power Consumption (typical at 230V at 50Hz):
ON: 56 W; SLEEP: 10 W; OFF: 2 W
With Projected Capacitive:
- Monitor Only Power Consumption (Typical at 110V at 60Hz):
ON: 64 W; SLEEP: 9 W; OFF: 1.5 W
- Monitor Only Power Consumption (Typical at 230V at 50Hz):
ON: 65 W; SLEEP: 9 W; OFF: 1.5 W尺寸
With IntelliTouch Dual-Touch: 30.0" x 18.0" x 3.1" / 762mm x 457mm x 78.0mm
With Projected Capacitive: 31.1" x 19.0" x 2.8" / 790mm x 484mm x 72.0mm运输尺寸
34.5" x 23.4" x 7.9" / 885mm x 595mm x 200mm
重量 (不含包装)
IntelliTouch Dual-Touch: with ECMG2: 35.3 lbs / 16.0kg; without ECMG2: 29.8 lbs / 13.5kg
Projected Capacitive: with ECMG2: 36.4 lbs / 16.5 kg; without ECMG2: 33 lbs / 14.8kg重量 (含包装)
IntelliTouch Dual-Touch: with ECMG2: 50.9 lbs / 23.1kg; without ECMG2: 45.4 lbs / 20.6kg
Projected Capacitive: with ECMG2: 46.5 lbs / 21.1 kg; without ECMG2: 43.3 lbs / 19.4 kg工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20-80%
Storage: 10-95%
noncondensing安装选项
VESA MIS-F, 400 x 400, 6mm
Optional wall mount kit - Elo P/N: E750497MTBF
50,000小时演示
质保
3年
机构认证
UL, FCC, cUL, IC, CB, CE, VCCI, C-Tick, NOM CoC, GOST, BSMI, KC, e-Standby, CCC, China RoHS, with RFID: UL, with RFID: FCC, CE
Optional Accessories/Peripherals
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo P/N: D82064-000, available at additional cost.
NFC Adapter Kit - Elo P/N: E603158
WIRELESS N/G/B ADAPTER KEY USB-R - Elo P/N: E249774IDS Optional Accessories
i3 3.4 GHz ECMG2 - 无操作系统 IDS 01 系列专用 - Elo P/N: E001292
i3 3.4 GHz ECMG2 - Windows 7 IDS 01 系列专用 - Elo P/N: E001293
i3 3.4 GHz ECMG2 - Windows 8.1 IDS 01 系列专用 - Elo P/N: E001294
i5 3.7 GHz ECMG2 - 无操作系统 IDS 01 系列专用 - Elo P/N: E001295
i5 3.7 GHz ECMG2 - Windows 7 IDS 01 系列专用 - Elo P/N: E001296
i5 3.7 GHz ECMG2 - Windows 8.1 IDS 01 系列专用 - Elo P/N: E001297
i7 4.0 GHz ECMG2 - 无操作系统 IDS 01 系列专用 - Elo P/N: E001298
i7 4.0 GHz ECMG2 - Windows 7 IDS 01 系列专用 - Elo P/N: E001299
i7 4.0 GHz ECMG2 - Windows 8.1 IDS 01 系列专用 - Elo P/N: E001300
摄像头套件 - Elo P/N:E688656
OPS 套件 - Elo P/N:E102270
OSD 控件箱 - Elo P/N:E483757
可替换线缆套件 - Elo P/N:E000263
壁挂式安装套件 - Elo P/N:E248743可选底座
Optional stand available, order Elo P/N: E455084.
