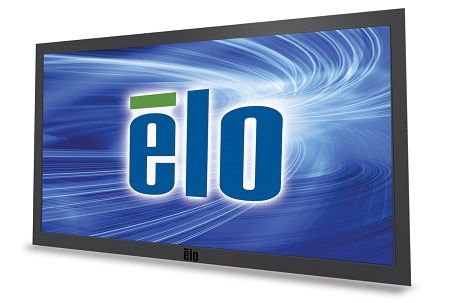

3209L 32" Interactive Digital Signage (Discontinued March 2016)
Overview
Elo's 3209L 32-inch full HD interactive digital signage touchscreen provides smooth dual-touch performance with IntelliTouch® Dual-Touch surface acoustic wave technology. The 3209L touchmonitor is 2.3-inches in total thickness and less than 1-inch in border width. The new sleek mechanical design enables thinner and smaller kiosk design for various applications like retail, hospitality, healthcare and other commercial markets. Applications in demanding public access environments are enabled with UL60950 ball drop glass compliance. Narrow borders and a USB touch interface add to the versatility of the 3209L.
The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
Other features.
- 1920 x 1080 full HD provides a bright, high contrast display with wide-view angle that easily attracts and holds the user attention.
- IntelliTouch Dual-Touch surface acoustic wave technology provides dual-touch performance.
- New sleek design: 2.3-inch total thickness; less than 1-inch borders; 13.2kg (29.17 lbs) total weight.
- LED backlighting reduces power consumption by 60% and generates less heat than traditional CCFL backlights.
- Commercial durability enabled with UL60950 ball drop glass compliance.
- Multiple mounting options are available.
- Worldwide agency approvals and a 3-year standard warranty.
规格
-
技术
产品料号
IntelliTouch Dual-Touch (USB, Clear, Worldwide) - E000732
IntelliTouch Dual-Touch (USB, Clear, Asia/Pacific) - E000733外壳颜色
深灰色
触控技术
SAW (IntelliTouch® 表面声波)-双点触控
对角线
32 英寸对角线，有源矩阵 TFT LCD (LED)
有效显示区域 (mm)
27.49" x 15.47" / 698.4 mm x 392.85 mm
长宽比
16:9
分辨率
1920 x 1080
其他支持的分辨率
640 x 480 at 60Hz
800 x 500 at 60Hz
800 x 600 at 56/60Hz
1024x768 at 60Hz
1280 x 720 at 60Hz
1280x960 at 60 Hz
1280x1024 at 60Hz
1360x768 at 60 Hz
1366x768 at 60 Hz
1440x900 at 60 Hz
1600x1200 at 60 Hz
1680x1050 at 60 Hz
1920x1080 at 60 Hz可视角度
水平: ±89° 或 178° 总计 / 垂直: ±89° 或 178° 总计
色彩
1670万
亮度 (标准)
LCD panel: 350 nits
IntelliTouch Dual-Touch: 315 nits响应时间 - 总计 (标准)
8 msec
对比度
3000:1
触控界面
USB: E000732, E000733
屏幕显示 (OSD)
Accessible through switches on the OSD Control Remote accessory.
Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
Languages : English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts : OSD, Power视频输入格式
Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only)
视频输入信号接口
Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only),
Female DVI-D Dual Link Connector (Asian model only)电源
Internal AC
输入接口
AC: IEC 60320 C14
输入电压
AC: 100-240 VAC, 50/60 Hz
输入频率
Horizontal: 31-80 kHz / Vertical: 47-63 Hz
功耗 (标准)
ON (monitor + AC/DC adapter): 55W
SLEEP (monitor + AC/DC adapter): 1.4W
OFF (monitor + AC/DC adapter): 0.3W尺寸
29.5" x 18" x 2.3" / 749.4 mm x 456 mm x 59 mm
运输尺寸
39.05" x 26.45" x 11.65" / 992 mm x 672 mm x 296 mm
重量 (不含包装)
29.17 lbs / 13.2 kg
重量 (含包装)
43.53 lbs / 19.7 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20-80%
Storage: 10-90%
noncondensing安装选项
400mm x 200mm VESA mount
密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
质保
3年
机构认证
CB, UL, cUL, FCC, CE, VCCI, IC, C-TICK, S-Mark, CCC, Russia & CIS GOST, NOM, KC, BSMI Argentina S-Mark, Australia C-Tick, Canada CUL, IC, China CCC, Europe CE, Japan VCCI, Korea KC, KCC, e-Standby, Mexico CoC, Russia GOST, Taiwan BSMI, United States UL, FCC, International CB, RoHS, China RoHS, WEEE
IntelliTouch Plus screen: United States UL 60950 ball-drop compliant.电源线
Cable Kit for Replacement Cables - E378229
Optional Accessories/Peripherals
IntelliTouch SAW Stylus pen with rubber tip - Elo p/n: D82064-000
Remote On-Screen Display (OSD) - Elo p/n: E483757
