5502L 55英寸互动数字标牌 (非触摸模型 - 2019年3月停产)

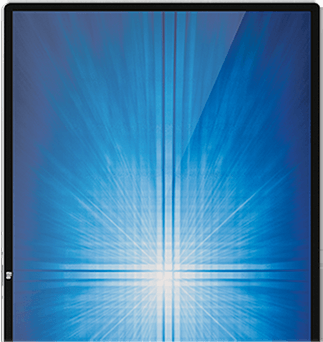

Elo 5502L Touchscreen Signage Display
Add interactivity to any environment with Elo’s 5502L 55-inch touchscreen display. With a brilliant and responsive interactive canvas for leveraging a variety of content, the professional-grade large format display is well-suited for creating engaging experiences. From endless aisle and brand experiences to way-finding and collaboration, Elo’s touchscreen displays from 10 to 70 inches offer everything you need in a sleek, slim design and are built to withstand the rigors of continuous public use.
Bring Interactive Experiences into Public Places
Wayfinding
Product Configurator
Self-Service
Endless Aisle
Collaboration for all Environments
Not only do high traffic environments demand interaction, but meeting rooms and classrooms do as well.
They introduce heightened collaboration capabilities between the instructor and their audience, helping to drive concepts and
innovation beyond what a whiteboard and dry erase marker once did.
Collaborative
Learning
White Boarding &
Markup
Collaborative
Conferencing
Presentations
Meeting
Management
Unified Style Across Sizes
The 5502L is available with two touch technology options. Both enable 10+ touch for multi-user interaction with fast and sensitive responses.
Projected capacitive (PCAP) offers edge-to-edge glass with touch thru performance. Infrared (IR) offers ease of scalability to larger sizes with an extra
level of protection against scratches.
Accessorize with Elo Edge ConnectTM
Expand your touchscreens potential by adding an EMV reader, NFC/RFID, MSR, barcode reader or one of our many other accessories. With Elo Edge Connect, accessories attach flush to the edge of the touchscreen/display for a clean design and extended functionality. On the 5502L touchscreen monitor, you can easily add any combination of up to four Edge Connect products – configuration is up to you and easily changed at any time.
Transform your Touchscreen Display into a Touchscreen Computer
With high-powered CPU options for Android or Windows OS, Elo enables a seamless end-to-end solution from one manufacturer for interactive experiences.
Purpose-built for compatibility and long life-cycles, the compute modules and touchscreen systems create one of the most robust and reliable
solutions on any platform.
Add Windows Computing Power with Ease
The Elo Computer Modules (ECMs) for Windows slide into the back of the touchscreen display to deliver one of the industry's thinnest commercial grade all-in-one large format touchcomputers. AC power, video and USB signals pass between the computer module and the display making field installation and maintenance easy with no external cables required.
Start Managing Your Devices Smarter with the Elo BackpackTM & EloView®
The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView® portal, the Backpack provides a low-power, solid-state, fan-less computing solution running Android 7.1 (Nougat) with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Elo On-Site Exchange – We Have Your Back.
Retailers, restaurants, and business operators do not have the time or resources to deal with technology outages or finding the right person to call when an issue arises. For this, Elo offers a complimentary On-Site Exchange warranty with the purchase of any Elo large format IDS. On-Site Exchange is included with Elo’s standard three-year warranty to cover you in the unfortunate event your device has an issue. All you must do is submit an RMA through Elo’s online portal and we handle the rest.
Commercial-Grade Products Designed for Commercial-Grade Environments
Compliant with ADA and IBC requirements for protrusion when mounted to a wall with an Elo low-profile mount.
Ready for use 24/7
On-Site Exchange Program included with standard warranty. Learn More
Backed by our 3-year standard warranty with an optional extension to 4 or 5-years.
Purpose built for touch at the factory level
External control for remote management (RS232 via virtual comm-port)
规格
-
技术
产品料号
Non-Touch - E219186
外壳颜色
黑色
触控技术
无触控
对角线
54.6 英寸对角线，有源矩阵 TFT LCD (LED)
有效显示区域 (mm)
47.62" x 26.78" / 1209.60 mm x 680.40 mm
长宽比
16:9
分辨率
1920 x 1080 @ 60hz
其他支持的分辨率
640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56, 60Hz
1024x768 60Hz
1280x720 50, 60Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60Hz RB
1680x1050 60Hz, 60Hz RB
1920x1080 50, 60Hz可视角度
水平: ±89° 或 178° 总计 / 垂直: ±89° 或 178° 总计
色彩
1670万
亮度 (标准)
LCD Panel: 450 nits
响应时间 - 总计 (标准)
12 msec
对比度
1100:1
屏幕显示 (OSD)
Available through the Touch OSD menu.
Video Settings: Video Port Discovery, Video Source Select, Black Level, Brightness, Contrast, Sharpness, Auto Adjustment
Color Settings: Color Temperature, User Preset (for color), Dynamic Color Modes
Audio Settings: Audio Source selection, Mute, Volume adjustments
General Settings: Recall defaults, MDC protocol (for serial commands), Tabletop Mode (for tabletop thermal profile)
OSD Settings: OSD Timer and language
Information: Monitor, System Temperature, Help & Support
Power Settings: Power Behavior
RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.
VGA Settings: Allows user to change the H. position, V. position, Clock and Phase. If VGA is the selected source, the Auto-Adjust feature is available in the Video Settings tab.
See user manual for full details.I/O 端口
Input: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line in
Output: Audio Headphones out, RJ45 (for optional OSD remote)视频输入信号接口
Analog VGA Female DE-15 connector
2x HDCP-capable HDMI Type A connector
DisplayPort 1.1a connector视频输入频率
Horizontal: 31.5 - 73 KHz
Vertical: 47 - 63 Hz音频输入接口
3.5 mm TRS jack
音频信号输入频率
1Vrms max stereo signal (standard PC line out)
耳机输出接口
3.5 mm TRS jack
扬声器
4 x 5 W stereo speakers
电源
AC internal - Replacement power cables are available with the purchase of a replacement cable kit - Elo P/N: E060080
输入接口
IEC 60320 C6
输入电压
100 - 240 VAC 50/60Hz
最长工作时间
24 hours/day
功耗 (标准)
Monitor Only
(Typical at 120V at 60Hz):
ON: 106.7W
SLEEP: 1.8W
OFF: 0.03W
(Typical at 230V at 50Hz):
ON: 104.5W
SLEEP: 2.7W
OFF: 0.49W尺寸
50.50" x 29.66" x 2.38" / 1282.68 mm x 753.48 mm x 60.37mm
运输尺寸
55.9" x 9.25" x 34.6" / 1420 mm x 235 mm x 880 mm
重量 (不含包装)
With ECM: 81.64 lbs / 37.03 kg
Without ECM: 74.98 lbs / 34.01 kg重量 (含包装)
Without ECM: 94.07 lbs / 42.67 kg
工作温度
Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F
Table top Mode and with Intel OPS modules: 0° C to 35° C OR 32°F to 95°F储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20% to 80%
Storage: 10% to 90%安装选项
400mm x 400mm VESA 4-hole mounting interface on rear of unit
See dimensional drawings for detailsMTBF
50,000小时演示
质保
3年
延保选项
Extended 1 year warranty – Elo P/N: E137191
Extended 2 year warranty – Elo P/N: E351937机构认证
UL, FCC (US) - Class A
cUL, IC (Canada)
CB (International safety)
CE (Europe) - Class A
CCC (China)
EAC (Russia)
VCCI (Japan)
Energy Star 7.0
UL 60950 ball-drop compliant
IK07 impact compliant
EU Energy Efficiency A rating包装内含
QIG
HDMI cable
VGA-DB9 Serial Y-Cable
USB cable (Type A plug to Type B plug)
Power Cable IEC 60320-C5 (NA plug)
Power Cable IEC 60320-C5 (EU/KR plug)
Power Cable IEC 60320-C5 (UK plug)
3.5mm Audio CableIDS Optional Accessories
条码扫描器套件 - Elo P/N:E093433
2D 条码扫描器 – Elo P/N: E926356
Elo 安卓电脑模块 - Elo P/N: E611864
磁条阅读器 - Elo P/N:E001002
NFC/RFID 阅读器 - Elo P/N: E001004
IDS 02 系列摄像头 - Elo P/N:E275233
网络摄像头 IDS 02 系列 – KIT,网络摄像头 IDS02S - Elo P/N:E275233
安智公司 ICMP EMV 刷卡机 - Elo P/N:E200788
惠尔丰公司 E355 EMV 刷卡机 -Elo P/N:E201363
MagTek eDynamo 刷卡机- E375343
安智公司RP457c 刷卡机 (音频插孔, BT, USB) - E586981
安智公司RP457c 刷卡机 (BT, USB) - E710930
指纹识别器 (FPR) – Elo P/N: E001001
IDS-02系列 ECM 电源接口模块 - Elo P/N:E275433
IDS 侧面安装支架 - Elo P/N:E329508
有线OSD遥控器 - Elo P/N:E483757
ECMG2C 安卓版电脑模块套件 IDS 02 系列专用 - Elo P/N: E336899
OPS 适配器套件 IDS 02 系列 - Elo P/N: E337104
注:所有ELO-ECMG2C套件 均包含 E275433 ECMG2 电源连接器模块套件
i3-6100 ECMG3 - 无操作系统 (IDS 02系列) - Elo P/N: E400587
i3-6100 ECMG3 - Windows 7 (IDS 02系列) - Elo P/N: E400775
i3-6100 ECMG3 - Windows 10 (IDS 02系列) - Elo P/N: E400965
i5-6500 ECMG3 - 无操作系统 (IDS 02系列) - Elo P/N: E401168
i5-6500 ECMG3 - Windows 7 (IDS 02系列) - Elo P/N: E401365
i5-6500 ECMG3 - Windows 10 (IDS 02系列) - Elo P/N: E401558
i5-6500 ECMG3 - Windows 10（256 GB SSD和8GB RAM） - Elo P/N: E458919
i5-6500 ECMG3 - Windows 10 (IDS 02系列) - Elo P/N: E343989
i7-6700 ECMG3 - 无操作系统 (IDS 02系列) - Elo P/N: E401764
i7-6700 ECMG3 - Windows 7 (IDS 02系列) - Elo P/N: E401962
i7-6700 ECMG3 - Windows 10 (IDS 02系列) - Elo P/N: E402161
i7-6700 ECMG3 - Windows 10（256 GB SSD） - Elo P/N: E459109
注:所有ELO-ECMG3套件 均包含 E275433 ECMG3 电源连接器模块套件
PCAP 专用手写笔 - Elo P/N: E066148
集成盒子 - Elo P/N: E477238
