B-Series 15" and 17" Touchcomputer (Discontinued June 2013)
Overview

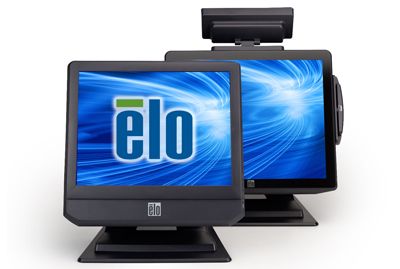

The Elo B-Series Rev.A All-in-One touchcomputer platform simply provides in a compact design, more flexibility with a choice of configuration and connectivity options, more serviceability with easy access to key components, and more processing power. In addition, a wide array field-installable peripherals, spill-resistant sealing, and a selection of input/output port connection options make the B-Series Rev.A both versatile and powerful. It is designed with the future in mind, allowing easy field serviceability of all of the main components.
The flexibility, serviceability and performance of the B-Series Rev.A are rare in commercial All-in-One touchcomputers. In a stylish, compact design, the B-Series Rev.A provides three highly configurable, ruggedized touchcomputers, in two screen sizes – 15-inch and 17-inch, plus the choice of three industry-leading Elo touch technologies. The B-Series Rev.A touchcomputer family has been developed to meet the diverse needs of a wide variety of point-of-sale (POS), point-of-information (POI), and point-of-service venues, including retail and hospitality display units, customer loyalty systems, internet access sites, digital signage as well as bedside entertainment, home automation and control.
Other features
- Choice of high-performance processor configurations - Facilitates a wide range of business and computing options
- Full range of standard connectivity ports plus expansion ports to add functionality - One system can be tailored to meet virtually any application or business requirement
- Second hard drive option for expanded storage or RAID configuration - Enables extra storage capacity or disk mirroring (RAID) for data protection
- Customer-installable peripheral, memory and storage options - Easily upgrade as business needs grow; down-time is minimized with easy-to-install system upgrade options for complete compatibility in a harmonious design
- Supports industry standard low profile PCI-E (PCI Express) expansion cards - Outstanding configurability/customization options to meet all your connectivity needs
- "Designed for touch" from the ground-up; stable stand and tiltable display with VESA mount for table-top, wall or pole mounting options - Stability to withstand the rigors of use in a public environment; mounting options to complement store layout and customer traffic
- 3 year warranty plus Elo quality and reliability - Satisfaction and peace of mind from nearly 40 years of experience built into all products
规格
-
技术
产品料号
AccuTouch (Antiglare, Worldwide) - E298876, E315375
AccuTouch (Antiglare, Worldwide) - E631741, E288585
AccuTouch (Antiglare, Worldwide) - E446295, E959668
AccuTouch (Antiglare, Worldwide) - E310423, E536864
AccuTouch (Antiglare, Worldwide) - E050992, E840622
AccuTouch (Antiglare, Worldwide) - E775878, E470952
IntelliTouch (Antiglare, Worldwide) - E136117, E614593
IntelliTouch (Antiglare, Worldwide) - E412120, E346104
IntelliTouch (Antiglare, Worldwide) - E632072, E175338
IntelliTouch (Antiglare, Worldwide) - E813121, E658138
IntelliTouch (Antiglare, Worldwide) - E209722, E522243
IntelliTouch (Antiglare, Worldwide) - E299023, E513303
Acoustic Pulse Recognition (Antiglare, Worldwide) - E924654, E105776
Acoustic Pulse Recognition (Antiglare, Worldwide) - E153737, E628455
Acoustic Pulse Recognition (Antiglare, Worldwide) - E124544, E706670
Acoustic Pulse Recognition (Antiglare, Worldwide) - E811395, E174797
Acoustic Pulse Recognition (Antiglare, Worldwide) - E357709, E859329
Acoustic Pulse Recognition (Antiglare, Worldwide) - E129608, E755672外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
声学脉冲识别 - 单触处理器
Intel 1.66GHz Atom Dual-Core D510
1MB L2 Cache
533MHz System BusBIOS
Phoenix
内存 (RAM)
1GB Low-Profile DDR2 DIMM
on 1 of 2 slots
(Expandable to 4GB maximum on 2 slots)硬盘
160GB 2.5” SATA HDD
芯片组
Intel NM10 Express
对角线
15 英寸对角线,有源矩阵 TFT LCD (LED)
控制按钮
Controls (bottom): menu, up, down, select, power
Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall, power button
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: user controls长宽比
4:3
有效显示区域 (mm)
12.0" x 9.0" / 304.1mm x 228.1mm
分辨率
1024 x 768 @ 60Hz
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
AccuTouch: 200 nits
Acoustic Pulse Recognition: 225 nits
IntelliTouch: 225 nits响应时间 - 总计 (标准)
8 msec
对比度
700:1
可视角度
水平: ±70°或 140°总计 /垂直: 65°/60°或 125°总计
USB端口
6 x USB 2.0 (4 on I/O, 1 x USB Side Access, 1 x USB Hidden/Protected)
Additional internal ports available for optional Elo peripherals串口
2 x USB-to-Serial RS-232 (standard)
以太网端口
1 x LAN RJ45 (Gigabit)
无线
Optional USB wireless kit available (802.11b/g/n)
钱箱端口
Optional cash drawer kit available (12V/24V default; selectable via jumper)
额外视频输出
Optional 2nd VGA port expansion card
音频端口
1 x 3.5mm line-in
1 x 3.5mm line-out
1 x 3.5mm mic-in扬声器
Two 2W internal speakers
操作系统
无操作系统
Windows XP Professional Service Pack 3 (32-bit only)
Windows POSReady 2009
Windows 7 Professional (32-bit only)语言
Windows XP – 24 语言组; Windows 7 – 35 语言组
Windows POSReady 2009 – 32 Language groups电源
External 12VDC universal-type power supply brick
AC input voltage: 100-240VAC
Input frequency: 50-60Hz
Maximum output power: 150W (Max draw: 170W)输入电压
100-240VAC
功耗 (标准)
36W
带底座的最大尺寸
14.0" x 14.3" x 10.5" / 354mm x 363mm x 267mm
不带底座的最大尺寸
14.0" x 14.3" x 14.1" / 355mm x 364mm x 359mm
运输尺寸
17.4" x 21.9" x 10.2" / 443mm x 555mm x 258mm
重量 (含底座)
19.0 lbs / 8.6 kg
重量 (不含底座)
14.2 lbs / 6.4 kg
重量 (含包装)
27.6 lbs / 12.5 kg
工作温度
32°F to 95°F / 0°C to 35°C
储存温度
-4°F to 140°F / -20°C to 60°C
湿度
Operating: 20% to 80%
Storage: 5% to 95%机构认证
UL/cUL, CE, CCC, NOM, AR S-Mark, FCC, GOST-R, C-Tick, TUV, VCCI
实时时钟
锂离子电池
MTBF
50,000小时演示
安装选项
100mm VESA mount or secure base to tabletop or desktop
质保
3年
密封性
Touchscreen sealed to bezel (IntelliTouch)
Touchscreen sealed to sub-bezel (AccuTouch, APR)
Touchscreen sealed to LCD (all)电源线
North American and European power cables included
其他功能
Serviceable internal components
Removable base with 100mm VESA mountingM
Threaded holes on bottom of base for mounting扩展选项
Wireless Adapter (USB, 802.11b/g/n)
Cash Drawer Port (12V/24V) expansion card
Second VGA Port expansion card
Modem PCI-E Card
Parallel Port PCI-E Card可替换DC电源
12V DC power brick, part number E806884, is available at additional cost.
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost
Optional Accessories/Peripherals
Second 160GB Hard Disk Drive (HDD)
64GB Solid State Drive (SSD)
Second HDD/SSD Mounting Bracket Kit only
1GB Low-Profile DDR2 Memory DIMM Kit
2GB Low-Profile DDR2 Memory DIMM Kit
4GB Low-Profile DDR2 Memory DIMM Kit
Magnetic Stripe Reader- Elo P/N: E545781
Customer Display (2x20 VFD) - Elo P/N: E879762
Biometric Fingerprint Reader (FPR) - Elo P/N: E375206Magnetic Stripe Reader (MSR)
The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:
- Reads up to 3 tracks of information
- Bidirectional swipe reading
- Superior reading of high jitter, scratched, and worn
MagStripe cards
- Reliable for over 1,000,000 card swipes
- Reads ISO7811, AAMVA, and most other card data formats
- PC software makes configuration changes easy
- Swipe speeds from 3 to 60 inches per second
- Interfaces: USB-IDTech-HID
- Fully supports USB 2.0
