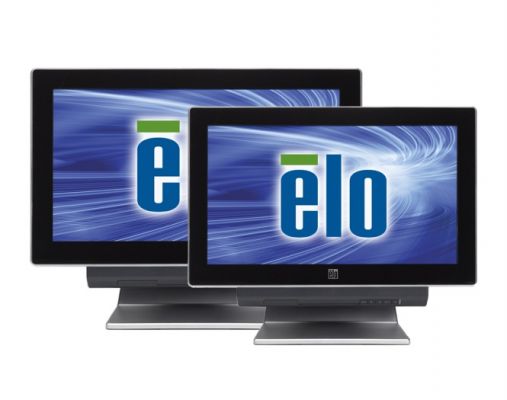

C-Series 19" Touchcomputer (Discontinued July 2016)
Overview
The new C-Series 19-inch All-in-One touchcomputers continue to bring the same style, flexibility and functionality to high-end point-of-sale (POS), point-of-information (POI), retail and hospitality businesses as the previous versions. The ruggedized C-Series touchcomputers are available with your choice of industry leading Elo touchscreen technologies - IntelliTouch® Zero-Bezel surface acoustic wave (SAW) with single and dual touch technologies. The 19-inch AiO has been developed to meet the demanding needs of a wide variety of point-of-sale (POS), point-of-information (POI), and point-of-service venues, including retail and hospitality display units, customer loyalty systems, internet access sites and mobile kiosks.
The C-Series AiO platform offers large, bright LED HD displays in a wide-aspect ratio, making them an excellent choice for counter top product demonstrations, customer information systems and hospitality host and seating systems that depend on an accurate display of restaurant layouts to display their seating/floorspace. The C-Series is RoHS compliant, Energy Star 5.2 certified, and includes an enclosure design with an IPX1 spill-resistant rating, protecting the unit from liquid drips and spills.
The C-Series is engineered for flexibility, with optional memory and storage configurations, as well as scalable computing power featuring high-performance processor configurations:
- C2 Rev.B models (19C2) with fanless Intel Atom Dual- Core 1.86GHz N2800 processor
- C3 Rev.B models (19C3) with fan-cooled 3rd Generation Intel Core-i3, 3.3GHz i3-3220 processor and HD2500 graphics
- C5 models (19C5) with fan-cooled 3rd Generation Intel Core-i5 3.0GHz i5-3550S processor with HD2500 graphics
Other features
- 19" 16:9 High Definition (HD) widescreen with high contrast LCD display - Provides a unique HD experience and interactivity
- Clean and neat with only a single wire for power required in many applications - Improved aesthetics, ease of integration into any environment or application
- Full range of standard connectivity ports to add functionality (USB, serial, etc) - Allowing for easy integration to any legacy or new install environments
- Special USB ports around periphery of monitor provide the ability to integrate peripherals with no external wiring - Clean look, added security; no accidental disconnects
- Choice of high-performance processor configurations - Facilitates a wide range of computing options, including low cost and high performance
- "Designed for touch" from the ground-up; stable stand and tilt able display with VESA mount for table-top, wall or pole mounting options - Durability to withstand the rigors of use in public environments with mounting options that complement a variety of configurations
- Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
- Excellent cable management and cables hidden from view - Prevents accidental disconnection and gives a clean, professional look
- Energy Star 5.2 certified - Lower energy costs and better for the environment
- Worldwide agency approvals - Meets local agency approvals, as required in many countries
- 3-year warranty plus Elo quality and reliability - Satisfaction and peace of mind from 40 years of experience built into all products
规格
-
技术
产品料号
Fanless - C2 Rev.B Models
AccuTouch (USB, Worldwide) - E591476
AccuTouch (USB, Worldwide) - E437597
AccuTouch (USB, Worldwide) - E284600
IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E190551
IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E973255
IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E277227
IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E094910
Fan-cooled - C3 Rev.B Models
AccuTouch (USB, Worldwide) - E460027
AccuTouch (USB, Worldwide) - E245439
AccuTouch (USB, Worldwide) - E961407
IntelliTouch ZBl/IntelliTouch ZB DT (USB, Worldwide) - E605073
IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E777002
IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E797640
Fan-cooled – C5 Models
IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E037828
IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E038028
IntelliTouch ZBIntelliTouch ZB DT (USB, Worldwide) - E038221外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW ZB (IntelliTouch®表面声波) - 单点触控
SAW ZB (IntelliTouch® 表面声波) - 双点触控处理器
Fanless C2 Rev.B Models:
Intel 1.86GHz Atom Dual-Core N2800 1MB L2 Cache
1MB L2 Cache
2.5 GT/s Direct Media Interface (DMI)
Fan-cooled C3 Rev.B Models:
Intel Core i3 3.3GHz i3-3220 3MB Intel® Smart Cache
5 GT/s Direct Media Interface (DMI)
Fan-cooled C5 Models:
Intel Core-i5 3.0GHz i5-3550S 6MB Intel Smart Cache
5 GT/s Direct Media Interface (DMI)BIOS
AMI
内存 (RAM)
Fanless C2 Rev.B Models:
2GB 1333MHz DDR3 SO-DIMM on 1 of 2 slots
(Expandable to 4GB maximum on 2 slots)
Fan-cooled C3 Rev.B Models:
2GB 1333MHz DDR3 SO-DIMM on 1 of 2 slots
(Expandable to 8GB maximum on 2 slots)
Fan-cooled C5 Models:
4GB 1333MHz DDR3 SO-DIMM on 1 of 2 slots
(Expandable to 8GB maximum on 2 slots)硬盘
320GB 2.5" 5400RPM Advanced Format (4K) SATA HDD
芯片组
Fanless C2 Rev.B Models:
Intel NM10 Express
Fan-cooled C3 Rev.B Models:
Intel H61 Express
Fan-cooled C5 Models:
Intel H61 Express对角线
19 英寸对角线，有源矩阵 TFT LCD (LED)
控制按钮
Controls (bottom): Power, brightness up, brightness down, volume up, volume down
Security lockouts:Power and control buttons lock长宽比
16:9
有效显示区域 (mm)
16.1" x 9.1" / 409.8mm x 230.4mm
分辨率
1366 x 768 @ 60Hz
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
可视角度
水平: ±85° 或 170° 总计 / 垂直: ±80° 或 160° 总计
USB端口
6 x USB 2.0 (4 on I/O, 2 x USB Front Access)
Additional internal ports available for optional Elo peripherals串口
2 x NATIVE RS-232 Serial (standard)
以太网端口
1 x LAN RJ45 (Gigabit)
无线
Optional USB wireless kit available (802.11b/g/n)
钱箱端口
Built-in 12V/24V Cash Drawer Port (24V default; selectable via jumper)
额外视频输出
1 x 2nd VGA out port
音频端口
1 x 3.5mm line-in
1 x 3.5mm line-out
1 x 3.5mm mic-in扬声器
Two 2W internal speakers
操作系统
无操作系统
Windows XP Professional Service Pack 3 (32-bit only)
Windows 7 Professional Service Pack 1 (64-bit and 32-bit)
Microsoft Windows 8.1 Industry Embedded Pro 64-bit语言
Windows 8.1 - 36 语言组
Windows XP – 24 语言组; Windows 7 – 35 语言组电源
External 12VDC universal-type power supply brick
AC input voltage: 100-240VAC
Input frequency: 50-60Hz
Maximum output power: 150W (Max draw: 170W)输入电压
100-240VAC
功耗 (标准)
C2 Rev.B Models:
52W
C3 Rev.B Models:
74W
C5 Models:
74W带底座的最大尺寸
18.7" x 14.9" x 8.9" / 475mm x 380mm x 226mm
不带底座的最大尺寸
18.7" x 11.9" x 3.8" / 475mm x 302mm x 98mm
运输尺寸
23.2" x 19.5" x 14.2" / 590mm x 495mm x 360mm
重量 (含底座)
C2 Rev.B Models: 18.3 lbs / 8.3 kg
C3 Rev.B Models: 18.3 lbs / 8.3 kg
C5 Models: 18.3 lbs / 8.3 kg重量 (不含底座)
C2 Rev.B Models: 14.3 lbs / 6.5 kg
C3 Rev.B Models: 14.3lbs / 6.5kg
C5 Models: 14.3lbs / 6.5kg运输重量 (含底座)
C2 Rev.B Models: 26.5 lbs / 12.0 kg
C3 Rev.B Models: 26.7 lbs / 12.1 kg
C5 Models: 26.7 lbs / 12.1 kg工作温度
0°C to 35°C / 32°F to 95°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20% to 80%
Storage: 5% to 95%机构认证
UL/cUL
FCC
Germany TUV
Europe CE
Europe CB
Mexico COC
Argentina S-mark (power brick only)
Australia C-Tick
Japan VCCI
IPX1
Energy Star 5.2实时时钟
锂离子电池
MTBF
50,000小时演示
安装选项
100mm VESA mount or secure base to tabletop or desktop
质保
3年
密封性
Touchscreen sealed to sub-bezel (AccuTouch, iTouch Plus)
Touchscreen sealed to LCD (all)
IPX1电源线
North American and European power cables included
其他功能
Serviceable internal components
Removable base with 100mm VESA mounting
Threaded holes on bottom of base for mounting
Kensington security lock扩展选项
Wireless Adapter (USB, 802.11b/g/n)
可替换DC电源
12V DC power brick, part number E806884, is available at additional cost
可选 IntelliTouch 手写笔
Stylus pen with rubber tip, designed specifically for use with IntelliTouch or IntelliTouch ZB surface wave touch technology. Part number D82064-000, available at additional cost.
Optional Accessories/Peripherals
Second 320GB Hard Disk Drive (HDD) Kit
Second HDD/SSD Mounting Bracket Kit Only
2GB DDR3 SODIMM Memory Kit
4GB DDR3 SODIMM Memory Kit
Magnetic Stripe Reader (MSR)
Customer Display (2x20 VFD)
7" LCD Customer Display (with or without touch) *Requires Second Rear-Facing LCD Mouting Bracket Kit - Elo P/N: E750095
Second Rear-Facing LCD Mounting Bracket Kit
Biometric Fingerprint Reader (FPR)
Wireless Adapter (USB, 802.11b/g/n)
Additional/Replacement AC Power Cables: Additional/replacement AC power cables are available at additional cost as below:
North America: Elo P/N: E042259
Europe/Korea: Elo P/N: E690013
China: Elo P/N: E030476
United Kingdom: Elo P/N: E235317
Taiwan: Elo P/N: E637694
Argentina: Elo P/N: E98419
Japan: Elo P/N: E109553
Japan 3-pin to 2-pin adapter: Elo P/N: E351985Magnetic Stripe Reader (MSR)
The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:
Reads up to 3 tracks of information
Bidirectional swipe reading
Superior reading of high jitter, scratched, and worn MagStripe cards
Reliable for over 1,000,000 card swipes
Reads ISO7811, AAMVA, and most other card data formats
PC software makes configuration changes easy
Swipe speeds from 3 to 60 inches per second
Interfaces: USB-IDTech-HID
Fully supports USB 2.0
Part Number: E545781
