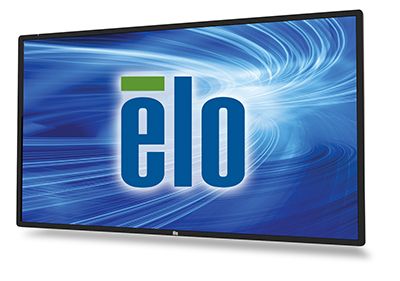

5501L 55" Interactive Digital Signage (Discontinued February 2016)
Overview
The 5501L Interactive Digital Signage display combines an optical multi-touch touchscreen with a professional-grade, large format display in a slim, integrated package. For retail, hospitality, commercial real estate, education, corporate meeting rooms or lobbies and other commercial applications, the large wide-screen format offers a high-quality, interactive canvas for attracting and engaging consumers. The 5501L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain. With a total thickness of 3.5 inches (89mm), the 5501L is compliant with the ADA requirement of less than 4" protrusion for wall-mounted products when used with a compatible wall-mount.
With a 700 nit LED panel, the 5501L is a bright, high quality display suitable for public environments. The optical touchscreen enables up to six simultaneous touches for multi-user interaction. This touch technology offers a fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Microsoft® Windows® 7 and Windows 8 operating systems. The touchscreen glass is 4mm thick and is fully tempered.
Elo IDS -01 series displays are compatible with Intel's Open Pluggable Standard (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 5501L into a completely integrated all-in-one computer-without the need for any cables or additional mounting hardware.
Computer modules are available in a choice of two models: ECMG2-i3 based on a 3.3GHz Intel® Core i3 processor and HD2500 graphics and ECMG2-i5 based on a 3.6GHz Intel® Core i5 processor and HD4000 graphics.
The high performance, commercial-grade computer modules make the 5501L a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.
Other features.
- Compatible with Intel Open Pluggable Standard (OPS) with available adapter kit (E102270), sold separately.
- Available with optical touchscreen technology for a sensitive multi-touch response with any input device.
- Pure-glass touchscreen delivers crystal clear images.
- Housed in a highly durable steel chassis for a long-life of reliable performance.
- VESA mounting.
- Aspect ratio 16:9
- High Definition (PHD) 1080p (1920 x 1080 native resolution).
- Seamless, field installable, computer module, docking integration.
- Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant.
- Analog VGA and HDCP-capable HDMI 1.3, video.
- The 5501L is available worldwide with global warranties.
规格
-
技术
产品料号
Optical (USB, Clear, Americas, Asia-Pacific, EMEA) - E000677
外壳颜色
黑色
触控技术
Optical - Up to 6 Touch
对角线
54.6 英寸对角线，有源矩阵 TFT LCD (LED)
有效显示区域 (mm)
47.6" x 26.7" / 1209 mm x 680 mm
长宽比
16:9
分辨率
1920 x 1080
其他支持的分辨率
640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56Hz
1024x768 60Hz
1280x720 50,60Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz (does not scale; image is centered on panel and the remaining active area is filled with black)
1440x900 60Hz
1680x1050 60Hz可视角度
水平: ±89° 或 178° 总计 / 垂直: ±89° 或 178° 总计
色彩
1670万
亮度 (标准)
LCD Panel: 700 nits
Optical: 630 nits响应时间 - 总计 (标准)
6 msec
对比度
4000:1
触控界面
USB: E000677
屏幕显示 (OSD)
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power Information, MDC Protocol, Support and Help, System Temperature and Exit视频输入格式
Analog VGA, HDCP-capable HDMI 1.3, Display port 1.1a
视频输入信号接口
Female DE-15 for Analog VGA
HDMI Type A receptacle Display part 1.1a Connector音频输入接口
3.5 mm TRS jack
音频信号输入频率
1 Vrms max. stereo signal (standard PC line out)
耳机输出接口
3.5 mm TRS jack
扬声器
Internal Speakers: 4x5 W stereo speakers, Configurable for stereo in portrait or landscape
电源
Type: Internal AC
输入接口
IEC 60320 C14
输入电压
100-240 VAC, 50/60 Hz
输入频率
Horizontal: 31.5 - 73 kHz / Vertical: 47 - 63 Hz
功耗 (标准)
Monitor only (at 120V/60Hz)
ON: 122.0W; SLEEP: 13.0W; OFF: 2.0W
Monitor only (at 230V/50Hz)
ON: 120.0W; SLEEP: 12.0W; OFF: 2.4W尺寸
49.8" x 29.0" x 3.5" / 1265 mm x 737 mm x 89 mm
运输尺寸
56.0" x 34.5" x 9.8" / 1422 mm x 876 mm x 249 mm
重量 (不含包装)
Without computer module: 94.8 lbs / 43.0 kg
With computer module: 98.5 lbs / 44.7 kg重量 (含包装)
Without computer module: 110.2 lbs / 50.0 kg
With computer module: 114 lbs / 51.7 kg工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 50°C / -4°F to 122°F
湿度
Operating: 20-80%
Storage: 10-90%
noncondensing安装选项
VESA 4-hole Mount per MIS-F, 600 x 600, 6mm
MTBF
50,000小时演示
质保
3年
机构认证
Without RFID: CB, UL, cUL, FCC Class A, CE Class A, VCCI Class A, IC, C-TICK Class A, CCC, Russia & CIS GOST, NOM, KC, BSMI, e-standby
With RFID: UL, FCC(US) Class A, CE(Europe) Class AIDS Optional Accessories
i3 3.4 GHz ECMG2 - 无操作系统 IDS 01 系列专用 - Elo P/N: E001292
i3 3.4 GHz ECMG2 - Windows 7 IDS 01 系列专用 - Elo P/N: E001293
i3 3.4 GHz ECMG2 - Windows 8.1 IDS 01 系列专用 - Elo P/N: E001294
i5 3.7 GHz ECMG2 - 无操作系统 IDS 01 系列专用 - Elo P/N: E001295
i5 3.7 GHz ECMG2 - Windows 7 IDS 01 系列专用 - Elo P/N: E001296
i5 3.7 GHz ECMG2 - Windows 8.1 IDS 01 系列专用 - Elo P/N: E001297
i7 4.0 GHz ECMG2 - 无操作系统 IDS 01 系列专用 - Elo P/N: E001298
i7 4.0 GHz ECMG2 - Windows 7 IDS 01 系列专用 - Elo P/N: E001299
i7 4.0 GHz ECMG2 - Windows 8.1 IDS 01 系列专用 - Elo P/N: E001300
摄像头套件 - Elo P/N:E688656
NFC适配器 - Elo P/N:E918074
OPS 套件 - Elo P/N:E102270
OSD 控件箱 - Elo P/N:E483757
可替换线缆套件 - Elo P/N:E000263
壁挂式安装套件 - Elo P/N:E248743
Wireless Adapter Key (USB) - Elo P/N: E249774可选底座
E448725
